Features:
Key Highlights:

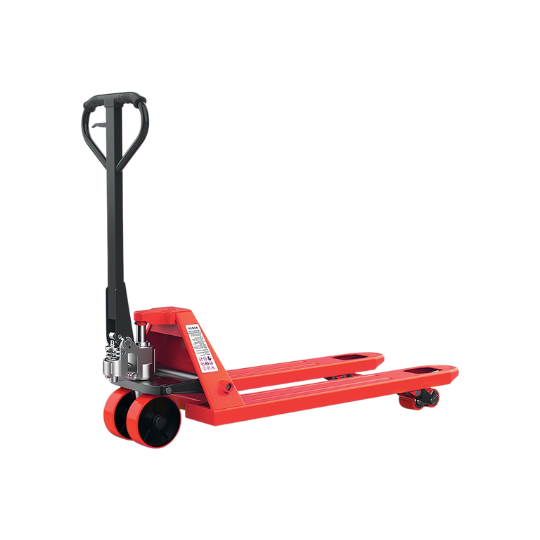

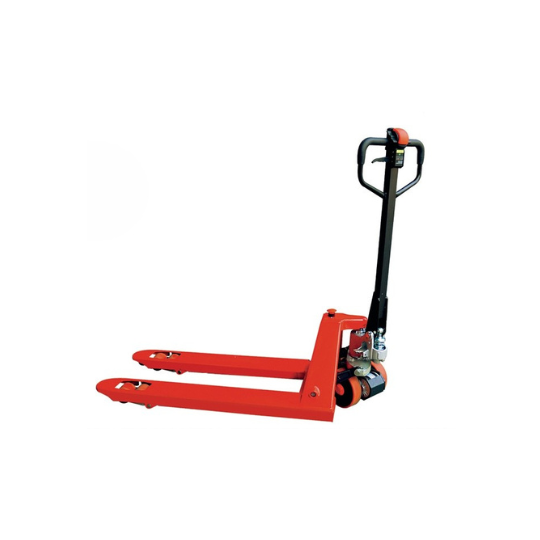

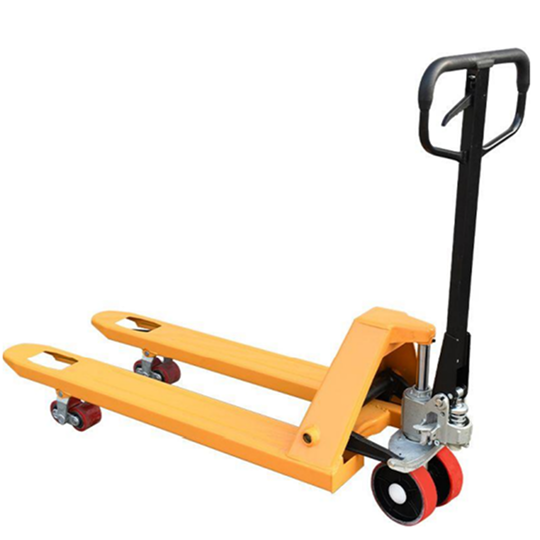

The Hand Pallet Truck is the ideal “storage aid” and “handling partner” for all manual transport tasks over short distances. It is excellently suitable for use on lorries, in small warehouses, and in markets.
TES-AC Hand Pallet Truck Models Comparison
| Model | TES-AC 2.0 | TES-AC 2.5 | TES-AC 3.0 | TES-AC 5.0 |
|---|---|---|---|---|
| Capacity (kg) | 2000 | 2500 | 3000 | 5000 |
| Min. Fork Height (mm) | 80 | 80 | 80 | 80 |
| Max. Fork Height (mm) | 200 | 200 | 200 | 200 |
| Lifting Height (mm) | 120 | 120 | 120 | 120 |
| Fork Length (mm) | 1150 / 1220 | 1150 / 1220 | 1150 / 1220 | 1150 / 1220 |
| Single Fork Height (mm) | 160 | 160 | 160 | 160 |
| Width Overall Forks (mm) | 550 / 685 | 550 / 685 | 550 / 685 | 550 / 685 |
| Fork Wheel – Single (mm) | 80×93 / 74×93 | 80×93 / 74×93 | 80×93 / 74×93 | 80×93 / 74×93 |
| Fork Wheel – Tandem (mm) | 80×70 | 80×70 | 80×70 | 80×70 |
| Steering Wheel (mm) | 180×50 | 180×50 | 180×50 | 180×50 |
| Truck Weight (kg) | 78–92 | 78–92 | 78–94 | 130–135 |
| Qty / 20ft Container (pcs) | 180 / 144 | 180 / 144 | 180 / 144 | 180 / 144 |
Performance & Options:
Customization Options:
